Surgical Guide

Clear Surgical Guide Resin
Category: 3D Resins
SKU: N/A
  • Clear & nice aesthetic appearance
  • High flexural strength
  • Easy chemical disinfection & autoclavable
  • Fast printing with high accuracy

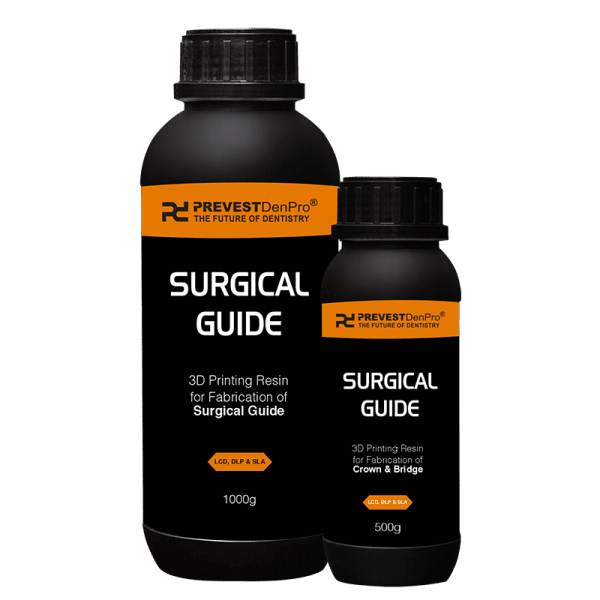

PACKAGING

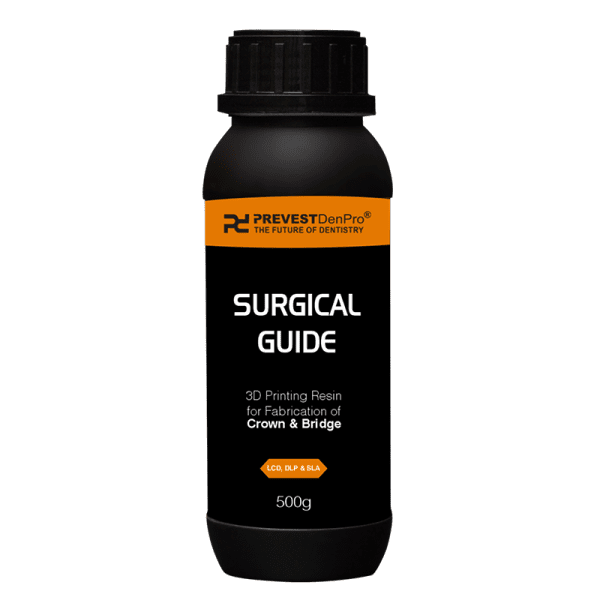

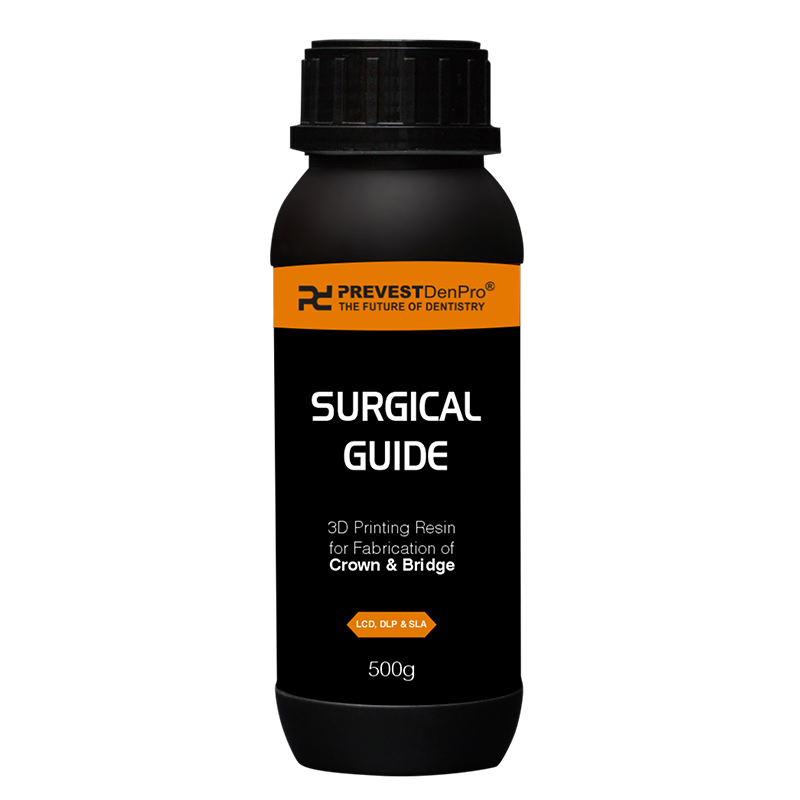

  • 1 x 500g Bottle.

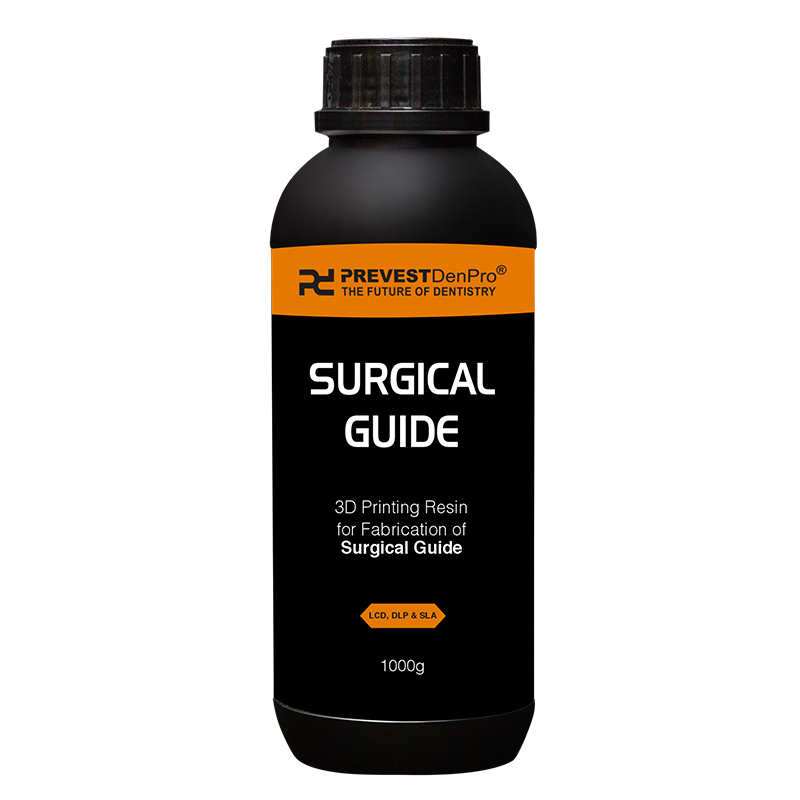

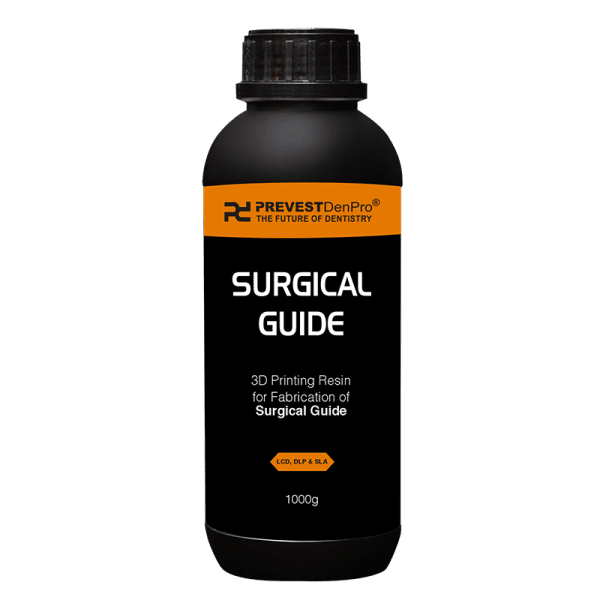

  • 1 x 1000g Bottle.

From 10,000.00

Quantity

CDSCO Registered
CDSCO
Registered & Approved as per MDR 2017 Guidelines by Central Drugs Standard Control Organization

INDICATIONS

  • It is a photopolymer resin used for 3D printing dental surgical guides to aid in dental implant
    placement procedure.

PRODUCT BENEFITS

  • Autoclavable
  • Easy chemical disinfection
  • Fast printing
  • Clear and nice aesthetic appearance
  • High flexural strength

CHEMISTRY

  • Methacrylates, Photo-initiator, Inhibitor and Pigment.
Technical Data
1. Flexural Strength ≥ 70 MPa
2. Flexural Modulus ≥ 2.0 Gpa
ASTM D790-15 (Method-B)
Viscosity 310 – 380 mPa.s
Size,

Reviews

There are no reviews yet.

Be the first to review “Surgical Guide”

Your email address will not be published. Required fields are marked *

Instructions for Use :

Processing : Make sure to work as clean as possible, dirty reservoirs or equipment can cause deformation and therefore failure of the printed objects.

Shake for 5 minutes before use : Shake the bottle for at least 5 minutes prior to the mixing process on the roller mixer. This is required to loosen the (possible) sediment from the bottom of the bottle.

Thoroughly mix before using :

  1. For first time use before opening the bottle, mix the product for 2.0 hours on the roller mixer to disperse the resin & the pigments adequately.
  2. Before each subsequent use, mix the product for 1.0 hour on a roller mixer to avoid color development & print failures which may occur when mixed insufficiently.

Fill printer resin tray : Make sure the temperature of the resin is between (20-25°C/68-77°F) and prevent exposure to (sun) light. Pour the resin in the resin tray of the3D printer. Do not mix different batches of the same product.

Printer settings : Only use the calibrated and/or predetermined settings for your LCD, DLP and SLA  3D printer and Post Wash-Cure system as mentioned in the Prevest website. The resin can only be used with a 385nm – 405nm UV light source.

Remove printed parts from platform : When the 3D printer has finished its program remove the building platform from the machine. Place the platform on a plastic sheet. The printed parts can now be removed from the platform using a metal scraper.

Cleaning printed parts :-

Step 1 : Dip the printed parts in an ethanol/Isopropyl alcohol and wash it using a Post wash-cure system for at least 15 minutes. Remove the cleaned parts and again clean in ethanol/Isopropyl alcohol using an ultrasonic bath for not more than 4-5 minutes as beyond this defect in printed parts may appear.

Finishing : After cleaning and drying, let the printed parts rest for at least 10 minutes to make sure that the printed parts are free of ethanol/isopropyl alcohol residue. Remove any support structures from the printed parts using plastic spatula.

Post-Curing : Place the printed parts in a Post wash-cure system for final polymerization. Post-curing is an UV-light treatment to ensure that printed parts obtain optimal polymer conversion. Through this the residual monomer is reduced to a minimum and the required mechanical properties are obtained. This procedure is necessary to achieve the desired material properties using the Post wash-cure system. To obtain stable cured parts use the prescribed curing time of 45-60 minutes and if possible, further gives cured parts an additional exposure of temperature min. 60°C / 140 °F for 15 minutes.

Note: The dispensed material shall not be placed back in the container and the dose once applied and used shall not be reused.

Warnings : The product contains polymerizable substances which may cause skin irritation. If contact with skin occurs, wash thoroughly with soap and water. If skin sensitization occurs, discontinue use. Avoid inhalation or ingestion.

Precautions :

  •  Recommended for dental use only.
  • Use of nitrile gloves is recommended until post-curing.
  • Restorations made of Prevest Surgical Guide resin should not be cleaned with chemical products.
  • Expired or unused resin should be completely cured or polymerized prior to disposal.

Contraindications : Prevest Surgical Guide resin should not be used for any other purpose than as a 3D print resin for the manufacturing of dental surgical guides. Any deviation from this instruction for use may have adverse effects on the chemical and physical quality of Prevest Surgical Guide Resin. In case of an allergic reaction, please contact a medical physician.

Storage Conditions: Store the resin in original packaging, preferably in cool and dark place, store at temperature between 10°C(50°F) to 24°C(75°F) and away from high temperatures or direct sunlight.

Shelf Life : 3 years from the date of manufacturing.
